SHELTERSCAPE

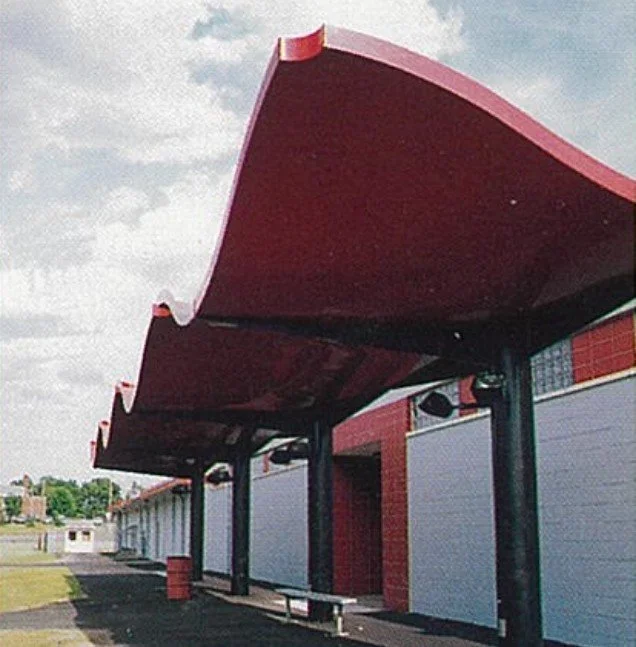

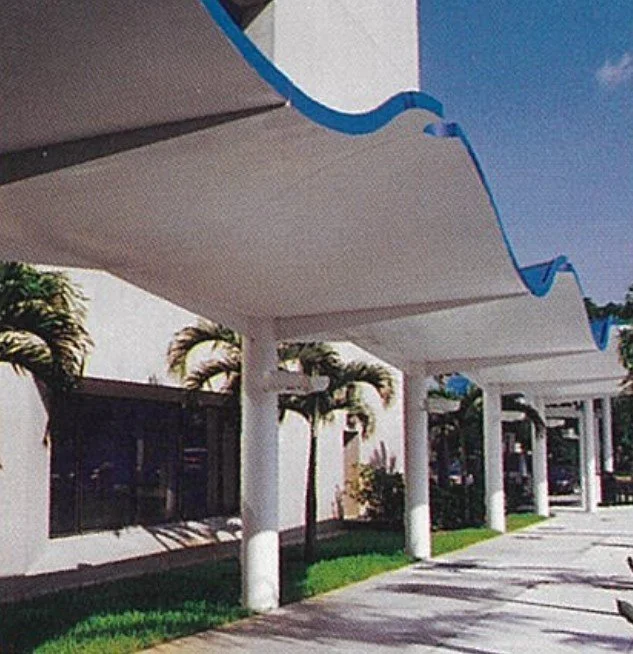

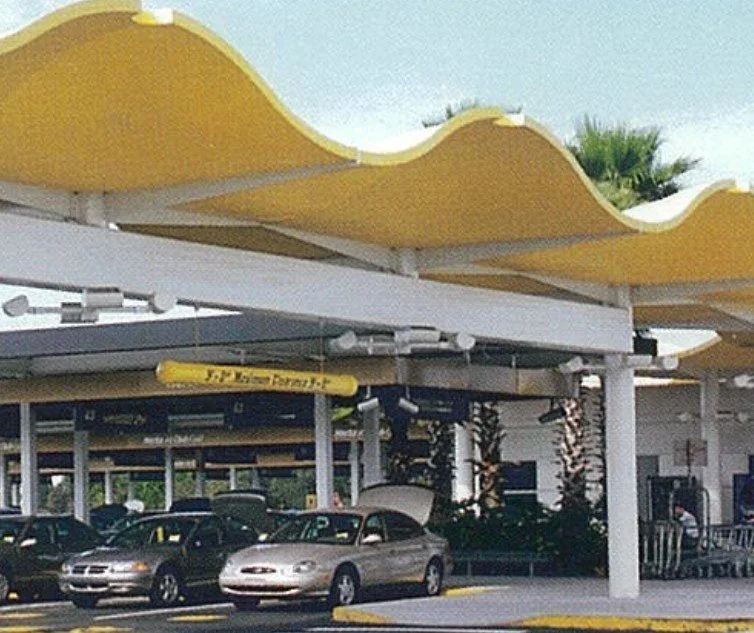

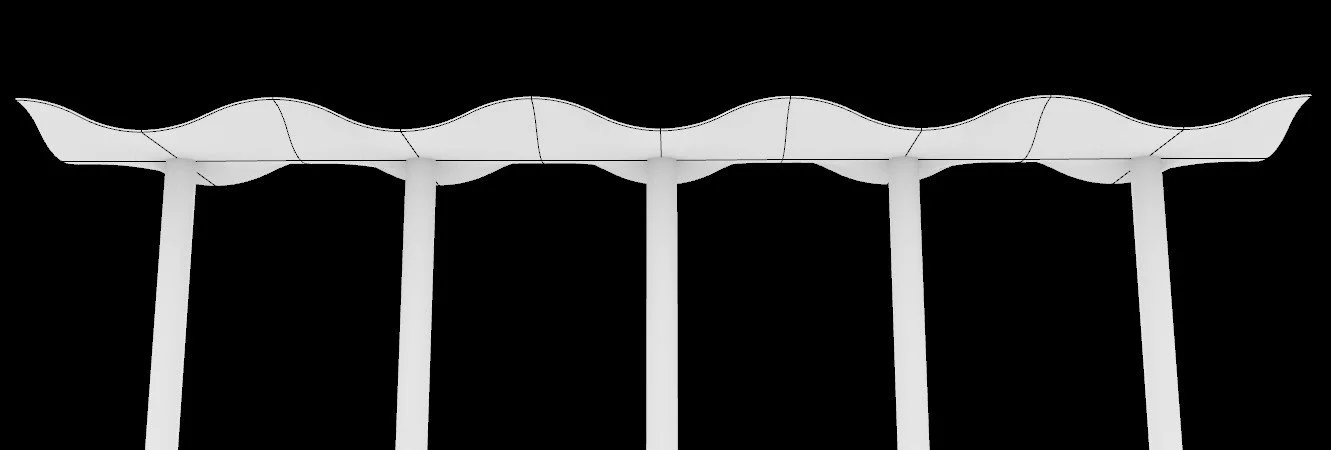

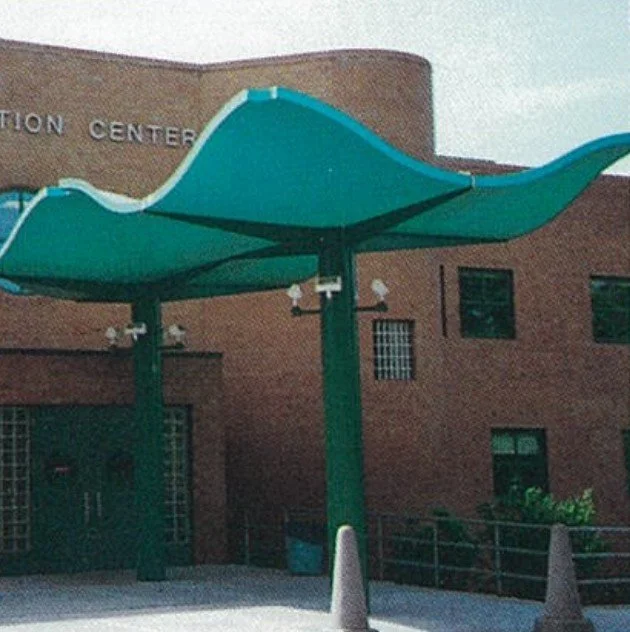

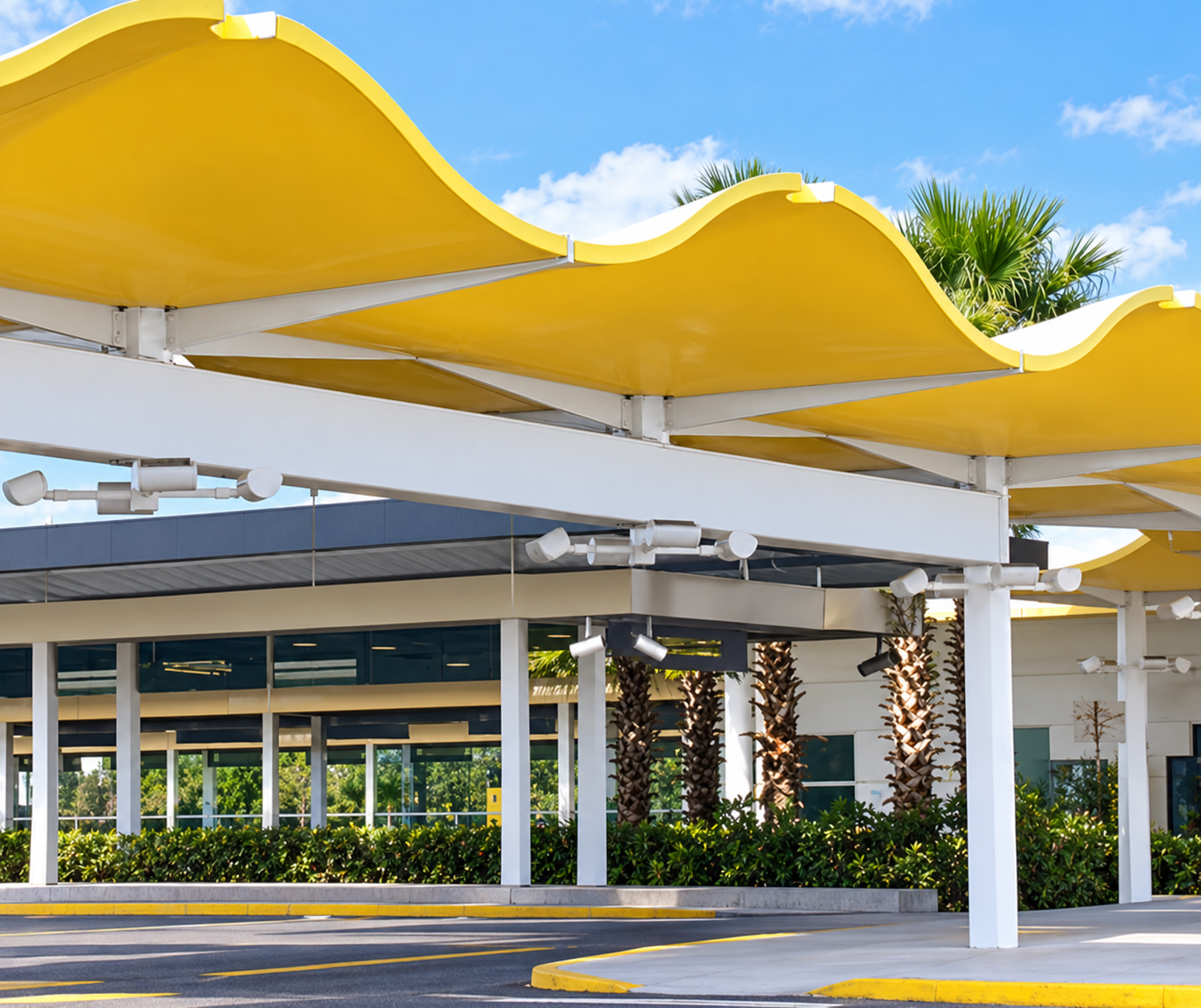

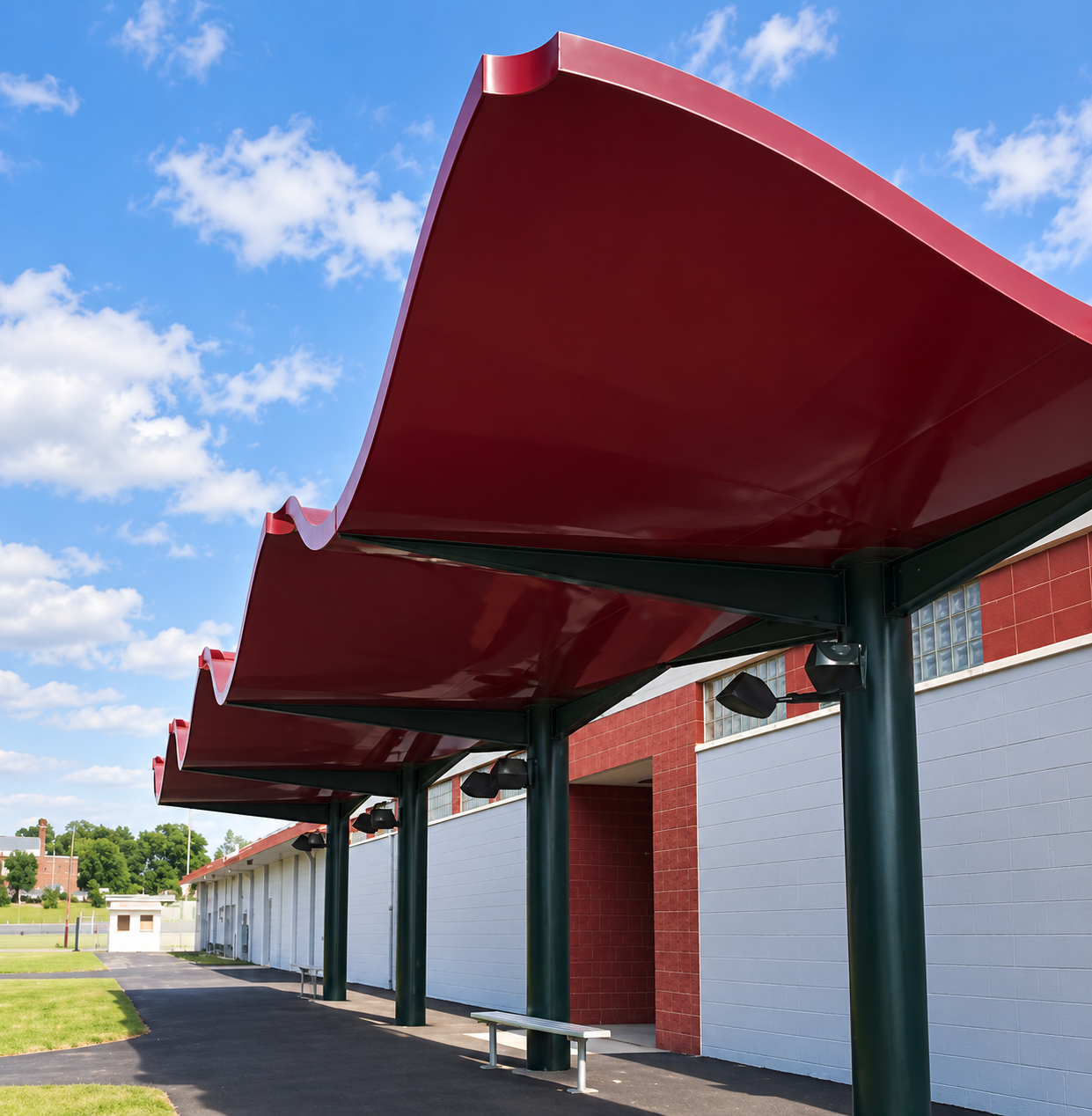

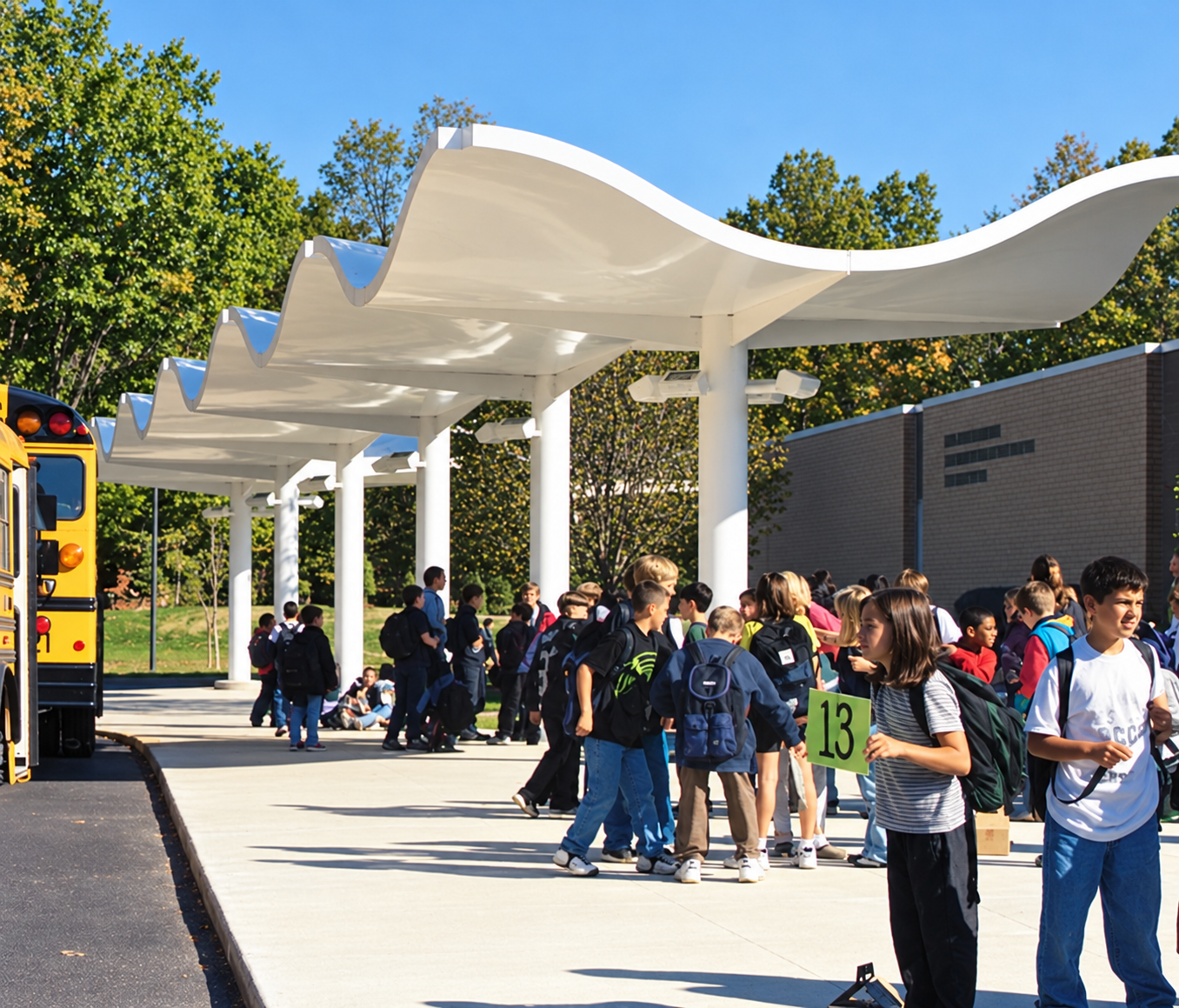

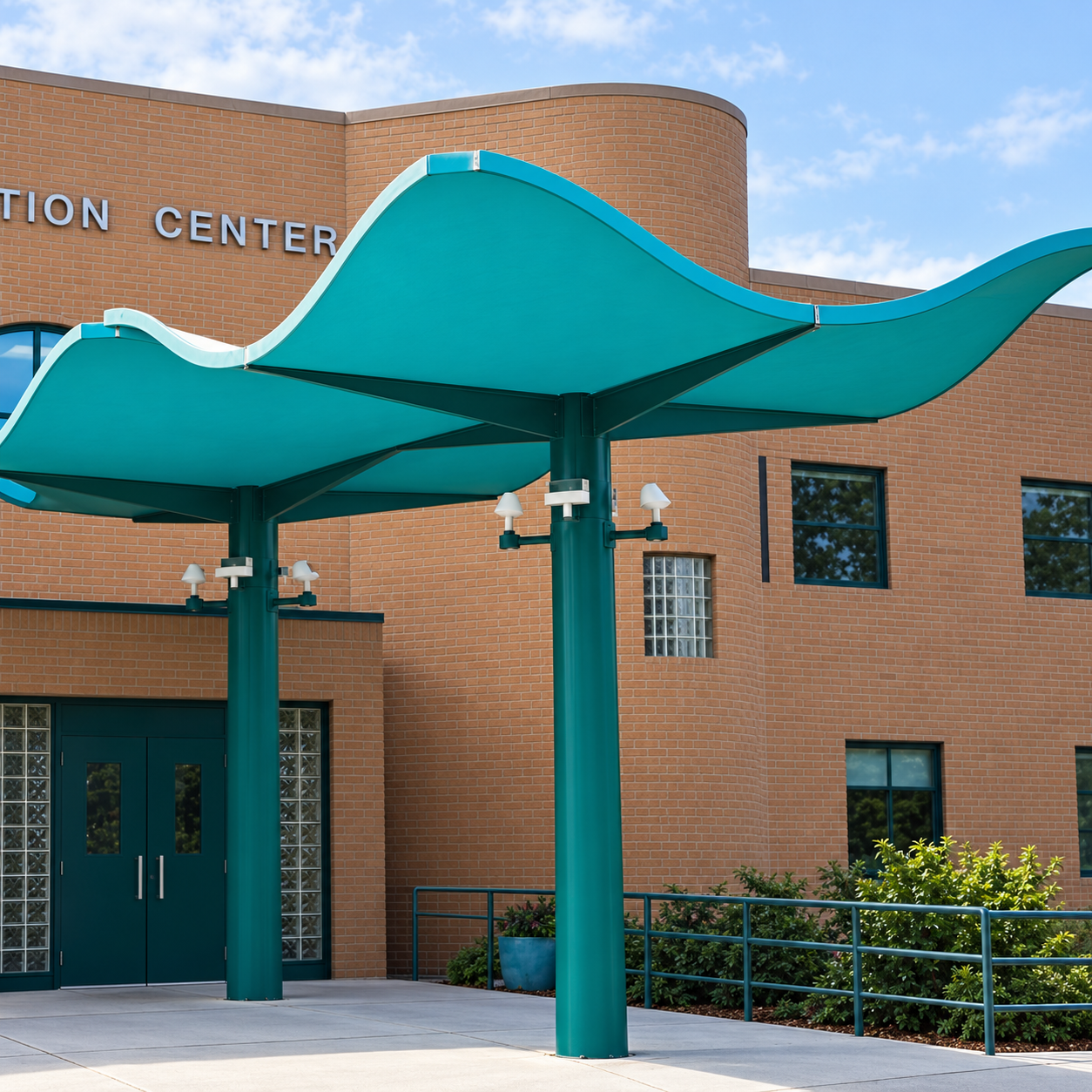

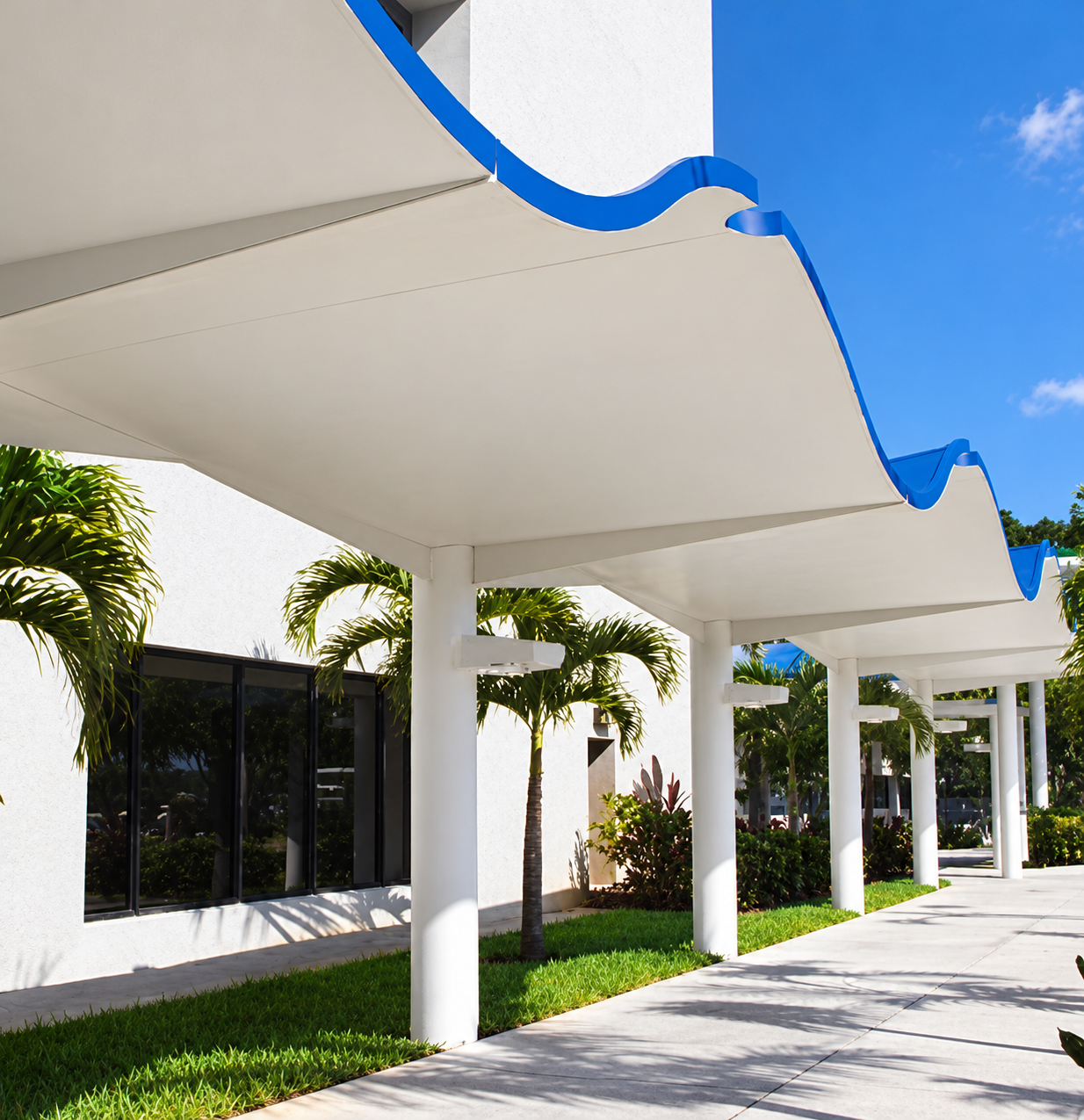

Shelterscape is a modular FRP shade system for protection from the elements in urban landscapes

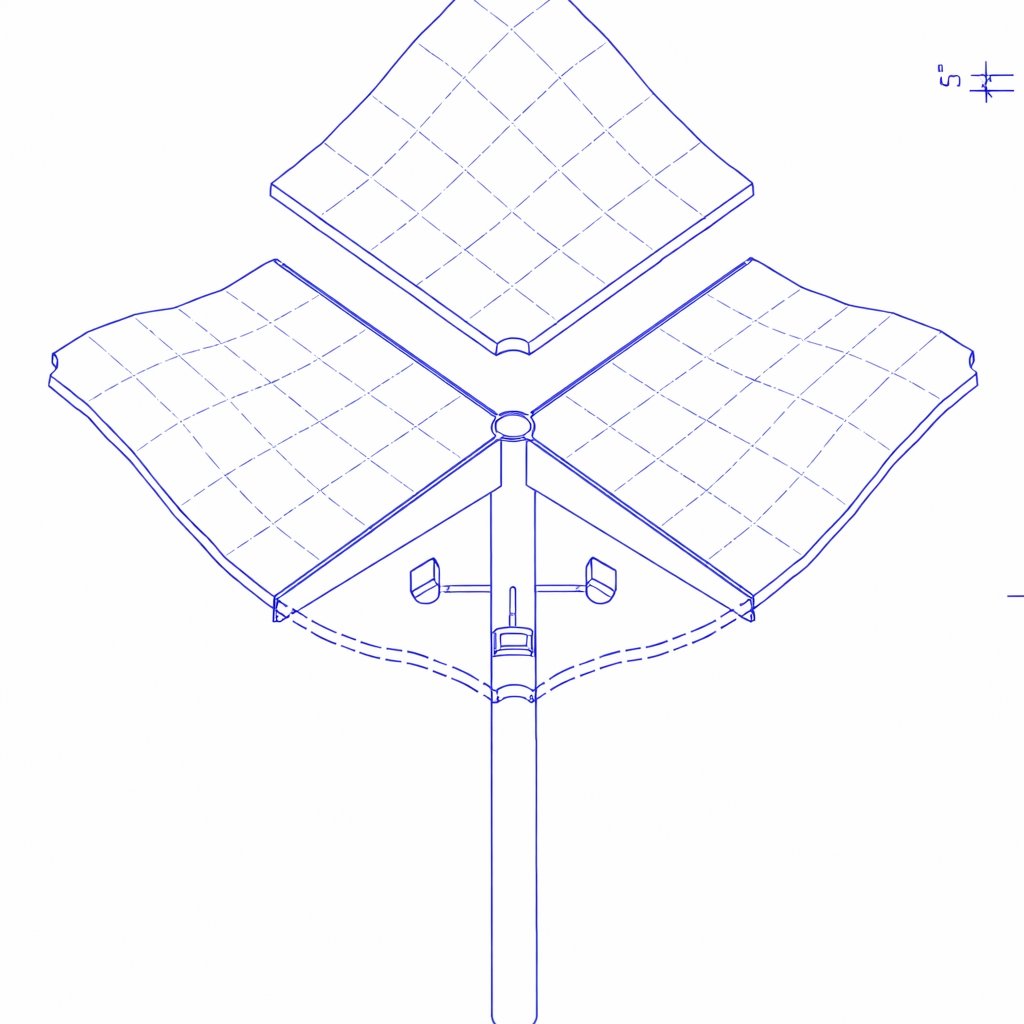

Fiberglass Reinforced Polyester (FRP) roof panels with Marine-Style weather resistant composite Panel construction with durable custom color gel-coat surface.
Panel Thickness: 1-1/4” Composite
Edge height: 5” - 6”
Panel Finish: High Quality gel-coat in nearly every color
Strength and Stiffness meets or exceeds:
Flexural Strength 20,000 PSI
Flexural Modulus 1,000,000 PSI
Tensile Strength 20,000 PSI
Tensile Modulus 1,000,000 PSI

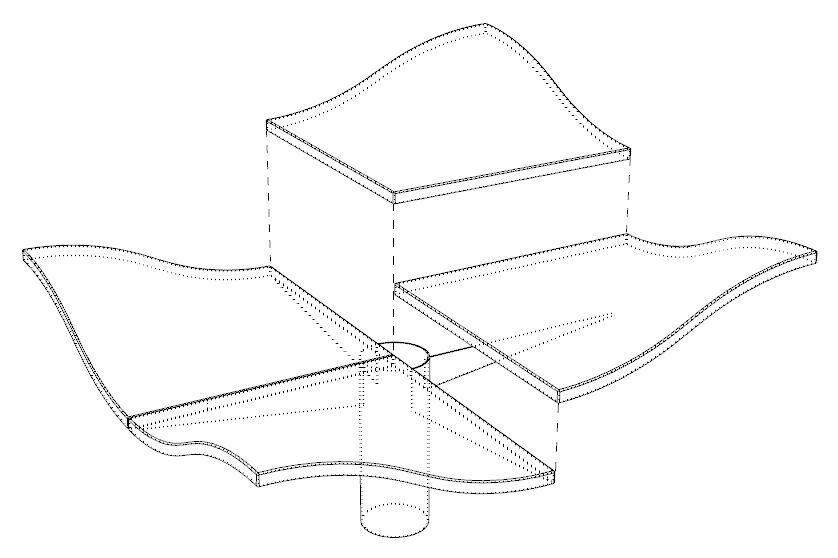

Framework:
Columns: 8” - 16” round steel pipe, Schedule 10, .25” wall
Support arms: 3/4” thick steel plate
Drainage: Internal through columns, to site drainage system, or can drain to curb or walk surface

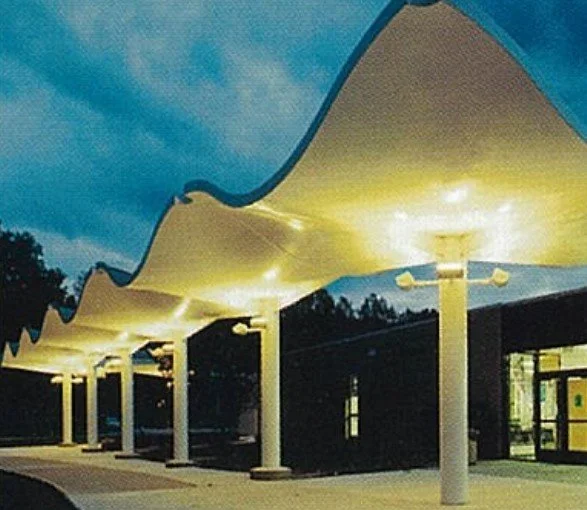

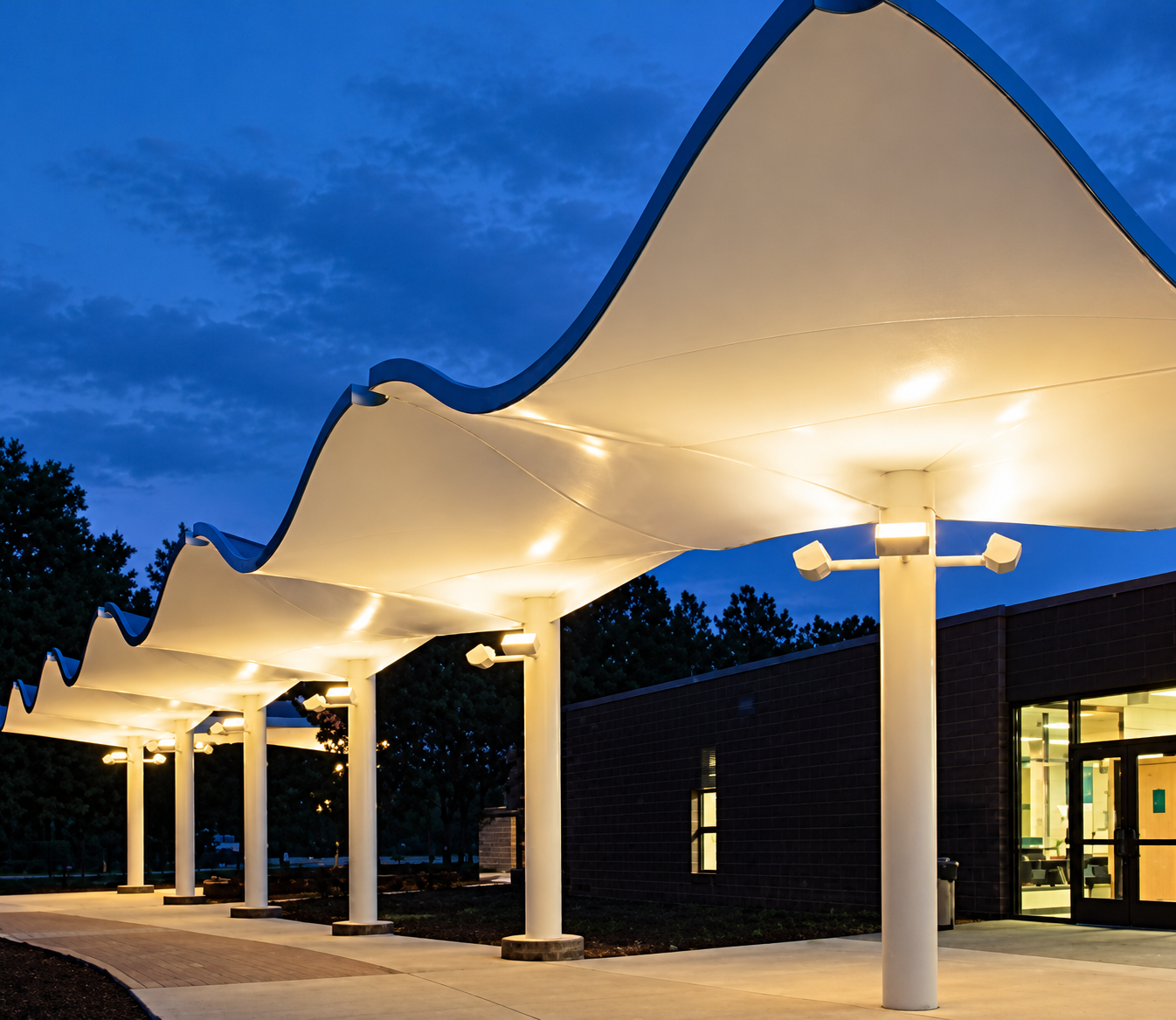

Electrical: Internal conduits, light supports and j-boxes pre installed prior to shipping
Fire Resistance: Class I,
